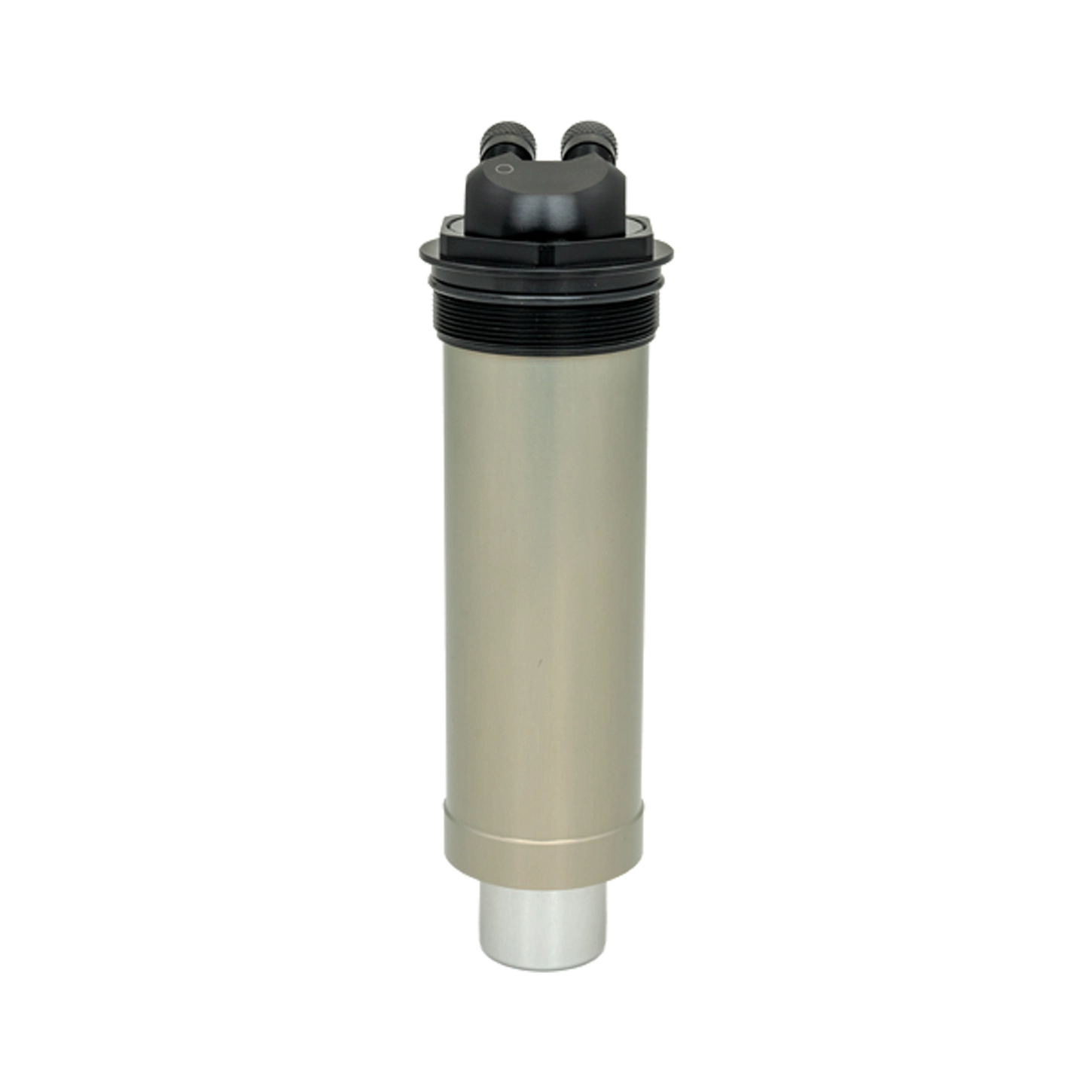

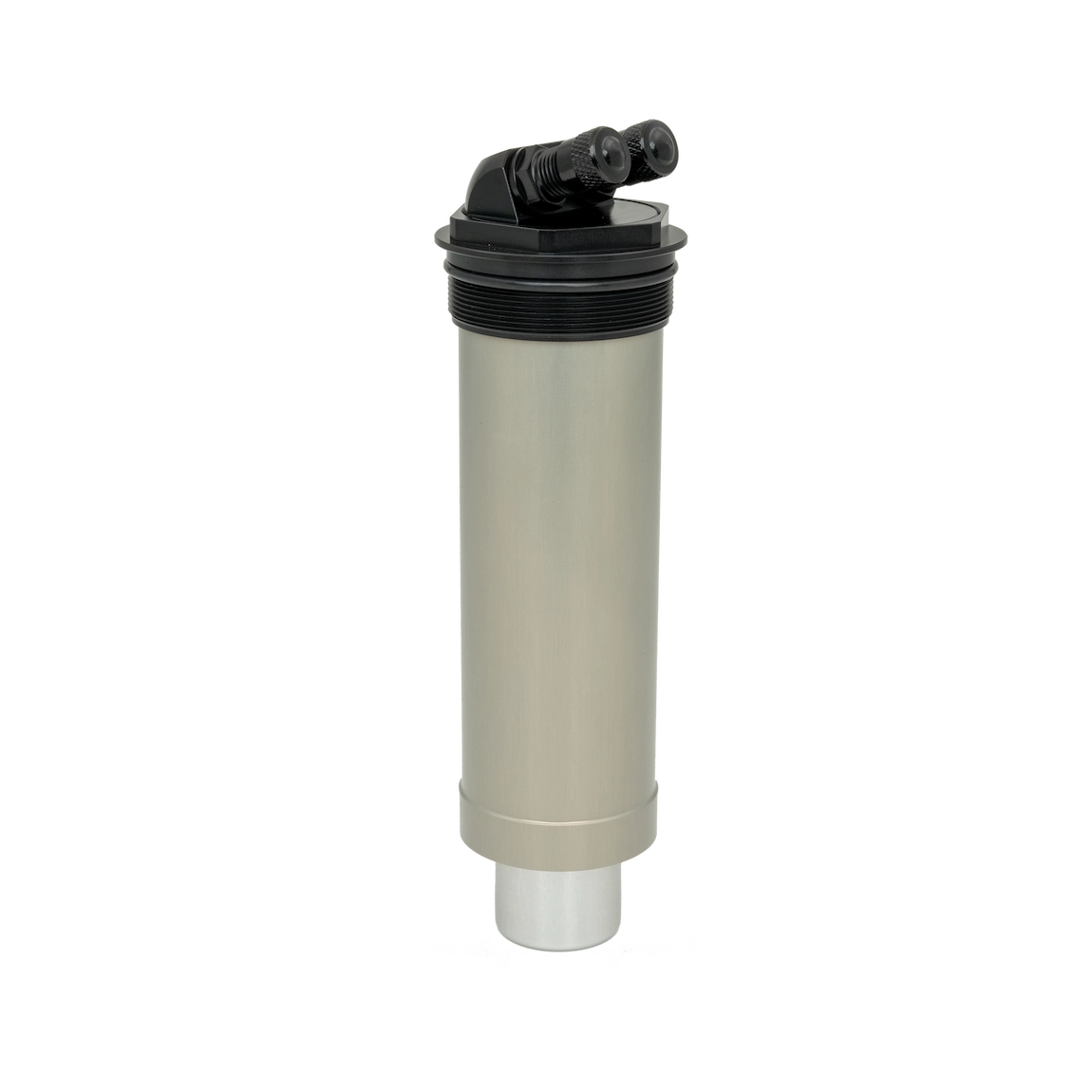

ROCK SHOX LYRIK & YARI

• SoloAir 2016-2018 // 150-180mm

• DebonAir 2019-2020 // 150-180mm
• DebonAir from 2021 // 140-180mm
• DebonAir+ from 2023 // 140-160mm
• Not compatible with Dual Position Air (DPA)

The AWK system for the ROCK SHOX LYRIK/YARI NG allows for individual adjustment of the spring characteristic. In order to achieve a spring characteristic that is as linear as possible, an air escape chamber is installed. A movable separating piston (VST), which is guided in a cylinder, separates the different air pressures in the main and escape chambers. During the compression process, the separating piston is pushed upwards and thus influences the course of the spring characteristic.

Advantages of the AWK system:

• Approximately linear course of the spring characteristic
• Individual adaptability
• Defined force curve
• Improved responsiveness
• Accelerated return to the SAG
• Increased traction
